To setup the Ethernet on Windows 7 ready for the ECU connection use the following steps.


  • Type "View Network Connections" into the search window, accessed from the start menu. Windows should provide a list of results. Select View Network Connections.



or  alternatively if the search function doesn't provide this:

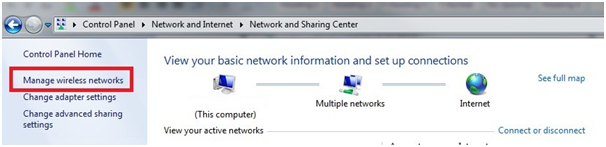

Start -> Control Panel -> Network and Internet  -> Network and Sharing Center. Once in this menu select "Change Adapter Settings"



  • The below menu should be visible. Select "Local Area Connection"

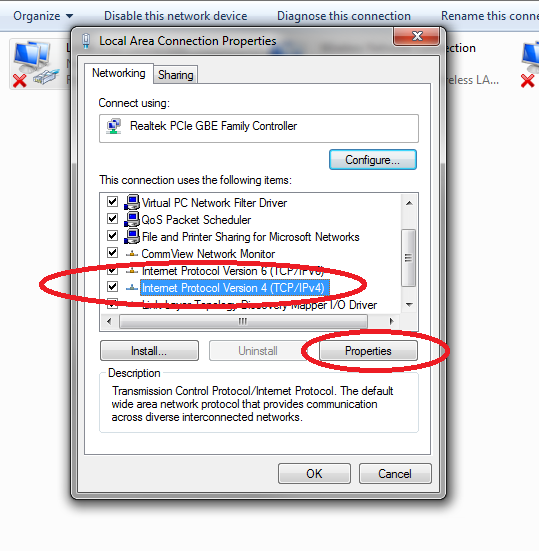

  • Select TCP/IPv4 then click Properties

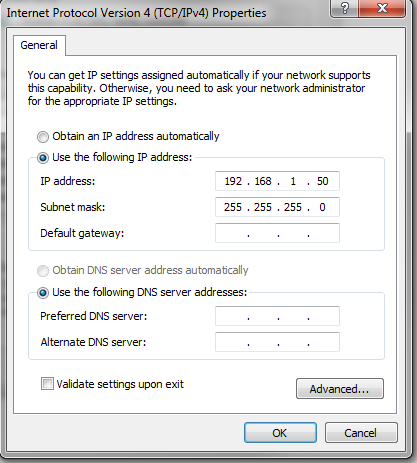

  • Select "Use the following IP address" and enter in the address 192.168.1.50. The Subnet should automatically default to 255.255.255.0. Click OK.

  • Done. Connect the Emtron Ethernet cable.
