Gear Position (RPM/Speed) Setup

Speed Channel (RPM/Speed)

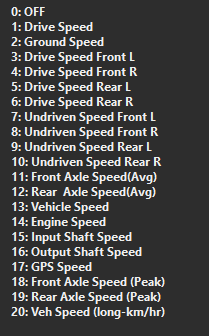

Select the speed channel

Speed Lockout

Gear Detection Ratio Calculation stops when the speed fall below this value.

0 = OFF

Typical: 2-5.

Default Gear

Default gear for Gear Detection Ratio Calculation.

Gear Valid Time

Typical: 10ms

Tolerance

Typical: 10%

Fault Time

Fault Time for Gear Detection Ratio Calculation.

Typical 1000ms

Clutch Switch Lockout

Gear Ratio Detection Calculation temporary stops when the Clutch Switch is ON i.e. during a gear change.

** NOTE: Clutch Switch Input Channel MUST be configured
