Z-Axis Setup

A Z-Axis function allows for a definable blend or swap based on a definable X Axis parameter.

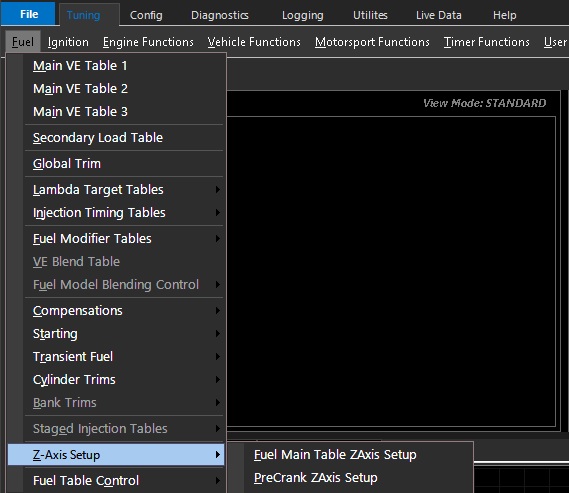

The available Fuel Z-Axis table functions are enabled via Fuel Table Control

Once enabled, the Z-Axis is defined by the user

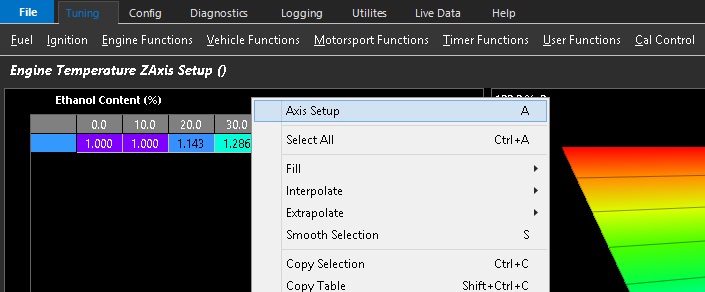

Right mouse click on the table to enter Table Axis setup

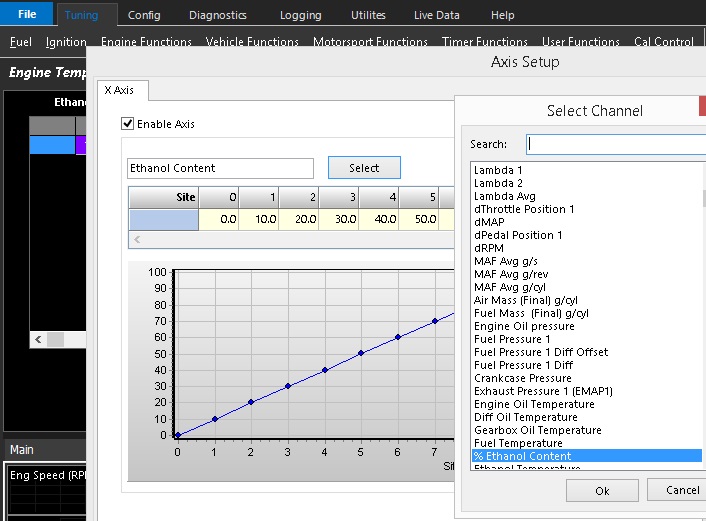

Within the Axis setup, any runtime can be selected and utilized as the X Axis

% Ethanol Content runtime shown as an example above
