Fuel Table Control
Fuel Table Control
Tuning -> Fuel -> Fuel Table Control
The fuel table control allows you to tailor the number of fuel tables used and how they are utilized.
There are 3 Main VE tables available, they can be used individually, on a user selectable cal slot
(Example: The position of the Si Drive selector in a Subaru Sti over the CAN BUS)
On a user defined Z-Axis (Example: Spanned across ethanol content)
Or a user defined blend across tables based on specified parameters.
This allows a user defined level of complexity

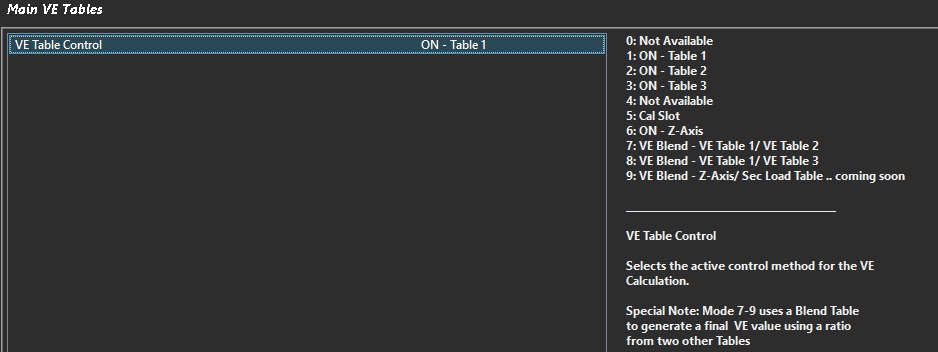

Main VE Fuel Table Control Tab shown as an example.
This level of complexity flexibility is common to all fuel control tables.
Compensation Tables:
The compensation tables offer the tuner the ability to compensate for a wide range of variable conditions
All compensation tables are user definable 3D tables that can be utilized against any runtime
More commonly used compensations are already named & linked to their specific purpose
With 2 additional User Comp tables where all parameters are defined by the user.
