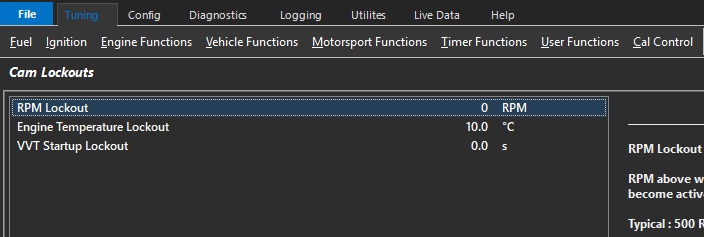

CAM Lockouts




RPM Lockout


RPM Lockout



Engine speed above which Cam Control is set to become active


Typical : 500 RPM




Engine Temp Lockout



Engine Temp above which Cam Control is set to become active.


Typical : 60 degC



VVT Startup Lockout


Delay timer from Crank RPM Exit before VVT Cam Control is permitted to become active.



This setting helps prevent the Cam Control Solenoid "Rattling" at startup due to low oil pressure.


Typical : 500 RPM
