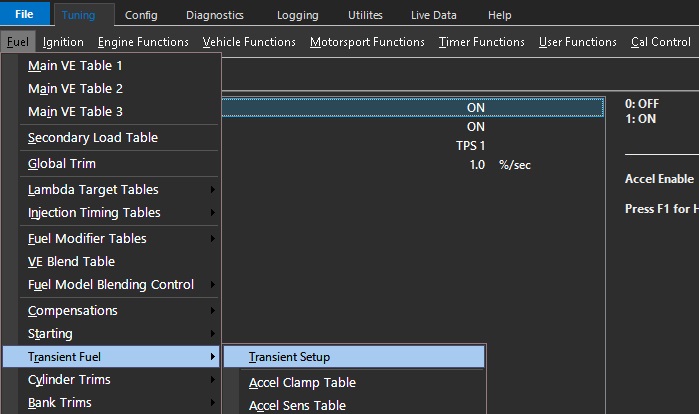

Transient Setup

Accel Enable: Enable or Disable Transient Acceleration fuel mode,

Decel Enable: Enable or Disable Transient Deceleration fuel mode,

Accel/Decel Mode: Configures runtime input for transient function initiation.

0: TPS 1 - Throttle position sensor 1 or Drive By Wire Servo Position Sensor 1

1: MAP - Manifold Absolute Pressure Sensor

2: PP 1 - Pedal Position Sensor 1

Accel/Decel Threshold (+/-): The rate of change threshold or lockout of the Accel/Decel mode runtime.

This value is set as a percentage of change over a second over it's previous state.

Lower numbers increase the sensitivity in initiating the transient fuel function.

A typical value is 1.0 %/sec.
