Throttle Body Model
Throttle Body Model
Introduction
The throttle body model is a key component to unlocking the advanced tuning features of the Emtron ECU. That is Throttle Mass Flow & Torque Modeling & Management. The accuracy of your setup in the throttle body mode is critical for good results.

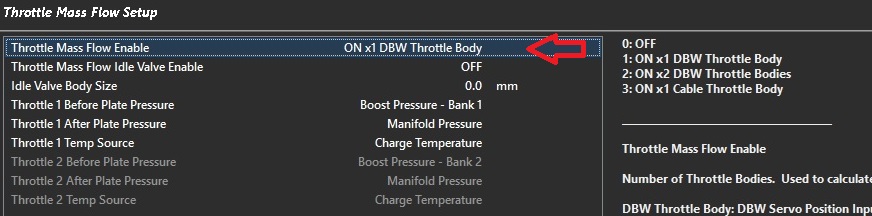

Tuning->Engine Functions->Throttle Body Model->Throttle Mass Flow Set-up->Throttle Mass Flow Enable

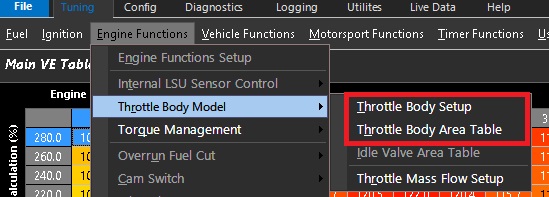

Once the throttle mass flow feature is characterized and enabled, the throttle body model setup can be accessed and setup
The Throttle Body setup consists of 2 main parts:
- Throttle body diameter and scaler.
- Throttle body area table.
See the DBW Torque Management help topic for more information on the process of converting Pedal Position to Throttle Area to DBW Servo target.
