Timers


The following calculated runtimes are generated by Emtron that are Timer related (to be further discussed more specifically):


User Timers                -         Status of User Timers

Crank Exit Timer        -         Time counter after cranking

       Crank Timer                -        Time count during cranking

       Firing Events Counter        -         Count of engine firing events

       Engine Cycle Counter        -         Count of engine cycles

       Engine Runtime         -         Engine runtime

       ECU Runtime                -         ECU on runtime

       TPS WOT Timer                -         Time throttle position is wide open

       TPS Closed Timer        -         Time throttle position is closed

       MAP High Timer                -         Time manifold pressure is high

       Gear Cut Timer                -         Gear cut duration

       Pedal Closed Timer        -         Time pedal position is closed

Race Timer                -         Race timer

Gearshift Cut Start         -         Gearshift time from cut start

Gearshift Next Gear         -         Gearshift time to next gear

Upshift Measured         -         Measured upshift time

Downshift Measured        -         Measured downshift time

Anti-Lag Disarm                -         Disarm timer for Anti-Lag


** Many of these timers are pre-configured and function automatically.


User Timers


Timers must be enabled


  • Config, Function Setup, Timer Functons


On

Off


User Timer Setup


Timers are configured in the Tuning section


  • Tuning, Timer Functions

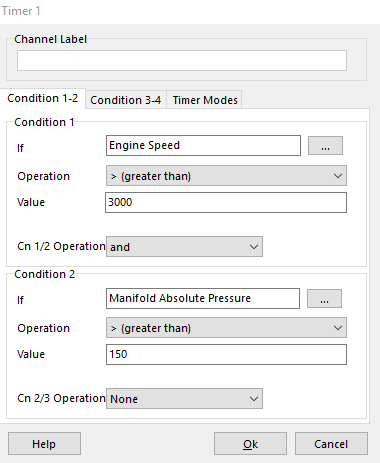

Configuring timer 1-5 opens up a configuration window to set conditions, max time, and Timer Reset Mode


Set the conditions for the timer to start using Emtron ECU runtimes or status.  There are up to 4 conditions that can be used to start the timer.



Max Time


Set the max time the timer can count


Timer Reset Mode



Reset when Timer Function turns OFF


       The timer will reset when the conditions are no longer met


Example:


Timer condition is >3000 rpm, the timer will reset every time the engine speed falls below 3000rpm.


Reset when Timer Function turns ON


       The timer will reset when the conditions are met again


Example:


Timer condition is >3000 rpm, the timer will reset when the engine speed falls below 3000rpm, and then goes past it again


Never


       The timer will not reset

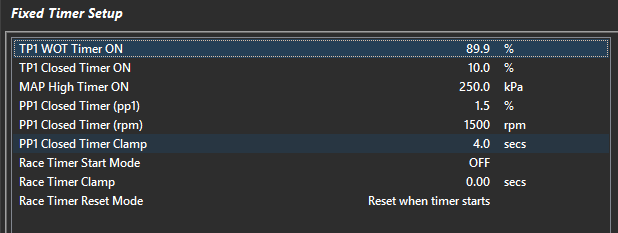

Fixed Timer Setup


Fixed Timers are configured in the Tuning section


  • Tuning, Timer Functions, Fixed Timer Setup



TP1 WOT Timer ON


Set what position TP1 needs to surpass to start counting TP WOT time


TP1 Closed Timer ON


Set what position TP1 needs to be below to start counting TP Closed time


MAP High Timer ON


Set what kPa MAP needs to surpass to start counting MAP High time


PP1 Closed Timer (pp1)


Set what position PP1 needs to be below to start counting PP Closed time


PP1 Closed Timer (rpm)


Set what RPM needs to be below to start counting PP Closed time


Race Timer Start Mode


Select from the following to trigger the Race Timer to start or create a custom function using a User Output




Race Timer Start Mode


Max time for Race Timer


Race Timer Reset Mode


Select from the following to trigger the Race Timer to reset or create a custom function using a User Output
