Idle Speed Control

The following calculated run times are generated by Emtron that are Ide Speed Control related (to be further discussed more specifically):

Idle Target – Current Target Idle Speed

Idle Position - Current Live Idle Position

Idle Target Error - Error from Target Idle Speed

Idle Position Base - Base Position of Idle Speed (%/Steps)

Idle Position Flow Target - Flow Target when using Idle TMF mode (g/second)

Throttle Area - Idle – Idle Throttle Area %

Pedal Position 1 – Pedal Position

Idle Target Offsets (grp) – Offsets to Idle Target (RPM)

Idle Comps (group) – Offsets to Idle Position (%/Steps)

Idle Status – Current status of Idle Speed Control

Idle PID Status - Status of Idle Speed Control Closed Loop PID

Idle P, I, and D - Proportional, Integral, and Derivative live data from Closed Loop

Idle Feed Forward - Feed forward position for Idle Speed Closed Loop Control

Idle Speed Control Function Setup

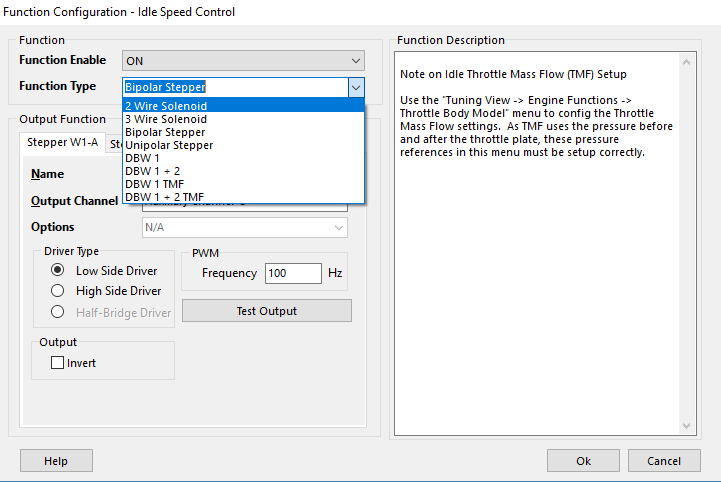

Emtron has eight methods of Idle Speed Control

Config, Function Setup, Idle Speed Control

2 Wire Idle Solenoid

Configure one output for control

3 Wire Idle Solenoid

Configure two outputs for control (Main/Slave)

Bipolar Stepper

Configure four outputs for control

Unipolar Stepper

Configure four outputs for control

DBW 1

No outputs, as the function takes over DBW positioning (raw position)

DBW 1+2

No outputs, as the function takes over DBW 1+2 positioning (raw position)

DBW 1 TMF

No outputs, as the function takes over DBW positioning (Throttle Mass Flow target)

DBW 1+2 TMF

No outputs, as the function takes over DBW 1+2 positioning (Throttle Mass Flow target)

** Idle Throttle Mass Flow (TMF) Setup

Use the "Tuning View -> Engine Functions -> Throttle Body Model" menu to config the Throttle Mass Flow settings. As TMF uses the pressure before and after the throttle plate, these pressure references in this menu must be setup correctly. See Idle Speed Tuning
