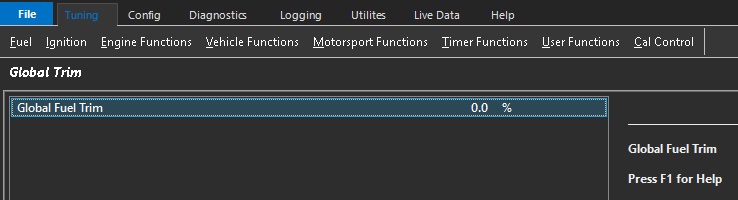

Global Fuel Trim

This function applies a global or overall fuel trim.

This is a + or - percentage trim that applies to the Base Calibration.

It allows for a rapid changes to the overall mixture and works independent of RPM and load.

Units: %

Min Value = - 50.0%

Max Value = + 50.0%

Typical 0% (Recommended)

Tuning Tip: This is a tool to aid in configuration and initial setup.

An overall trim should not remain once the engine is tuned correctly
